Product Summary
The HV615-1P is a 8-bit PIC Microcontroller with High Voltage Support and Fan Control Capabilities.
Parametrics
Absolute maximum ratings: (1)flash program memory words: 1k; (2)RAM bytes: 64; (3)I/O pins: 6; (4)internal oscillator: 4/8MHz.
Features
Features: (1)High Voltage VDD Support (available only on the HV variants): Any application with native high voltage rails; Saves external component cost; (2)PWM: Full ECCP with dead band control; Steerable; Provides auto shut-down for overcurrent conditions; (3)Comparator with hysteresis: Direct interface to Hall Effect element; Ideal for fan/motor control and monitoring; Any application requiring the ability to monitor speed and/or position; Better performance in electrically noisy environments; (4)TMR1 with Gate: Running directly from 4/8 MHz internal oscillator; Ideal for power supplies and battery chargers; Ideal for any application requiring conditional event or error counting; Applications needing pulse width measurements.

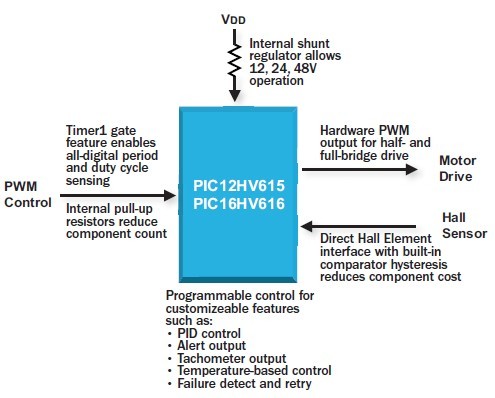

Diagrams
 |
