Product Summary

The TMS320F2809ZGMA device is a member of the TMS320C28x DSP generation, which is highly integrated, high-performance solutions for demanding control applications.

Parametrics

Absolute maximum ratings: (1)Supply voltage range, VDDIO, VDDA2, VDDAIO: - 0.3 V to 4.6 V; (2)Supply voltage range, VDD, VDD1A18, VDD2A18: - 0.5 V to 2.5 V; (3)VDD3VFL range: - 0.3 V to 4.6 V; (4)Input voltage range, VIN: - 0.3 V to 4.6 V; (5)Output voltage range, VO: - 0.3 V to 4.6 V; (6)Input clamp current, IIK (VIN < 0 or VIN > VDDIO): ±20 mA; (7)Output clamp current, IOK (VO < 0 or VO > VDDIO): ±20 mA; (8)Operating ambient temperature ranges, TA: A version (GGM, PZ): - 40℃ to 85℃, TA: S version (GGM, PZ): - 40℃ to 125℃, TA: Q version (GGM, PZ): - 40℃ to 125℃; (9)Storage temperature range, Tstg: - 65℃ to 150℃.

Features

Features: (1)High-Performance Static CMOS Technology; (2)JTAG Boundary Scan Support; (3)High-Performance 32-Bit CPU; (4)On-Chip Memory; (5)Boot ROM (4K x 16); (6)Clock and System Control; (7)Any GPIO A Pin Can Be Connected to One of the Three External Core Interrupts; (8)Peripheral Interrupt Expansion (PIE) Block That Supports All 43 Peripheral Interrupts.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

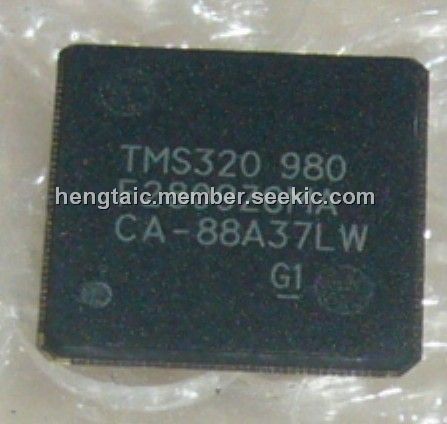

TMS320F2809ZGMA
TMS320F2809ZGMA
Texas Instruments
Digital Signal Processors & Controllers (DSP, DSC) 32-Bit DSC w/ 256KB Flash
Data Sheet
0-133: $10.25
133-250: $10.04
250-500: $9.82
