Product Summary

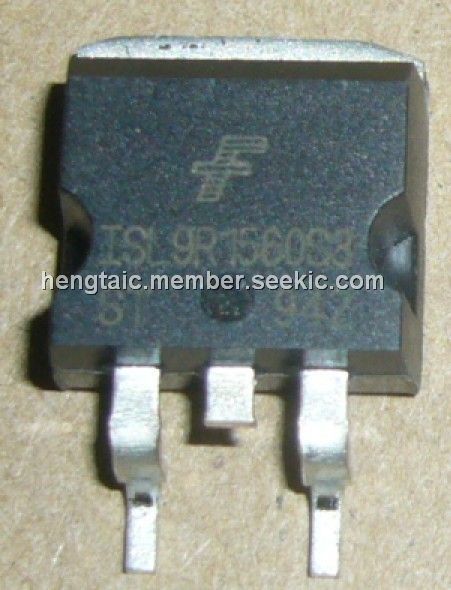

The ISL9R1560S3ST is a 15A, 600V Stealth Diode. It is optimized for low loss performance in high frequency hard switched applications.
Parametrics
Absolute maximum ratings: (1)Peak Repetitive Reverse Voltage:600V; (2)Working Peak Reverse Voltage:600V; (3)DC Blocking Voltage:600V; (4)Average Rectified Forward Current:15A; (5)Repetitive Peak Surge Current (20kHz Square Wave):30A; (6)Nonrepetitive Peak Surge Current (Halfwave 1 Phase 60Hz):200A; (7)Power Dissipation:150W; (8)Avalanche Energy (1A, 40mH):20mJ; (9)Operating and Storage Temperature:-55℃ to 175℃.
Features
Features: (1)Soft Recovery: tb / ta > 1.2; (2)Fast Recovery:trr < 30ns; (3)Operating Temperature:175℃; (4)Reverse Voltage:600V; (5)Avalanche Energy Rated.
Diagrams
