Product Summary

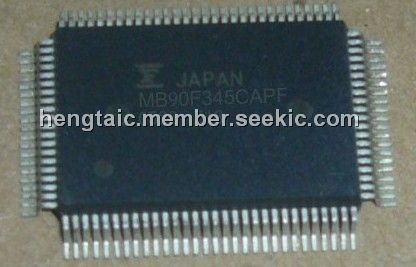

The MB90F345CAPF is a 16-bit Proprietary Microcontroller. It is especially designed for automotive and other industrial applications. Its main features are the on-board CAN Interfaces, which conform to V2.0 Part A and Part B, while supporting a very flexible message buffer scheme and so offering more functions than a normal full CAN approach.
Parametrics
Absolute maximum ratings: 1)Input voltage:VSS-0.3V to VSS + 6.0V ; (2)Output voltage:VSS-0.3V to VSS + 6.0V ; (3)Maximum Clamp Current:-4.0mA +4.0 mA ; (4)Total Maximum Clamp Current:40 mA ; (5)鈥淟鈥?level maximum output current:15mA ; (6)鈥淟鈥?level average output current:4mA; (7)鈥淟鈥?level maximum overall output current:100mA ; (8)鈥淟鈥?level average overall output current:50mA ; (9)鈥淗鈥?level maximum output current:-15mA ; (10)鈥淗鈥?level average output current:-4mA; (11)鈥淗鈥?level maximum overall output current:-100mA ; (12)鈥淗鈥?level average overall output current:-50mA ; (13)Power consumption:340mW ; (14)Operating temperature:-40鈩?to +105鈩? (15)Storage temperature:-55鈩?to +150鈩?
Features
Features: (1)Built-in PLL clock frequency multiplication circuit; (2)Operation by sub-clock (up to 50 kHz : 100 kHz oscillation clock divided two) is allowed. (devices without S-suffix only); (3)Minimum execution time of instruction : 42 ns (when operating with 4-MHz oscillation clock, and 6-time multi-plied PLL clock).; (4)Built-in Clock Modulation circuit; (5)16 Mbyte CPU memory space:24-bit internal addressing; (6)Increased processing speed:4-byte instruction queue; (7)Low power consumption (standby) mode.
Diagrams
<IMG src="http://www.seekic.com/uploadfile/ic-mfg/2011532524124.jpg" border=0>
 |
